Haas · CNC mills and lathes

A WiFi USB stick for your Haas.

Runs a program straight from the stick, or copies it into memory. WiFiDrive stays in its USB port, looks to the Haas like any stick, and gets your programs there over your own WiFi.

  • Works as it ships: the Haas reads it as is.
  • Run a program straight from it, as from any stick.
  • If your Haas won’t read it, a full refund within 30 days.
Buy it ready · Install on your own board ·
A Haas VF-2 and, behind it, a VF-3, in a shopHaas VF-2 and VF-3
Photos and videos

WiFiDrive in Haas machines.

Video · Haas
Video · Haas
A hand plugging a WiFiDrive into a Haas pendant’s side portHaas
A Haas VF-4 and a VF-7 in a shop’s rowHaas VF-4 and VF-7
A Haas VF-2 and, behind it, a VF-3, in a shopHaas VF-2 and VF-3
A Haas VF-1 in a shop, its pendant onHaas VF-1
Video · Haas
Video · Haas
The machinist at a Haas gives a thumbs up to the office windowHaas
The programmer at a laptop on the shop floor, a Haas behindHaas

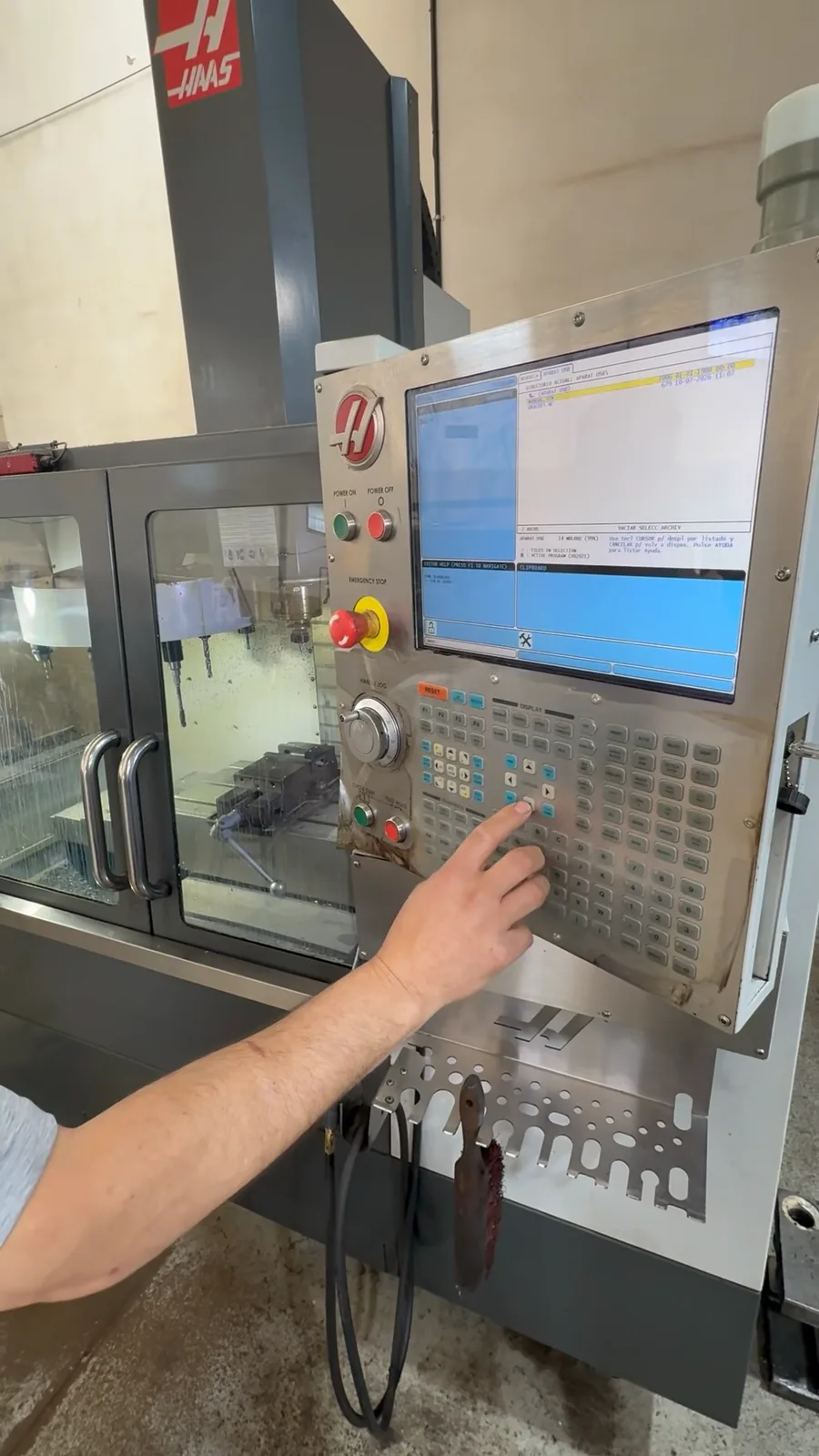

An operator at a Haas pendant, the Haas’s mark aboveHaas

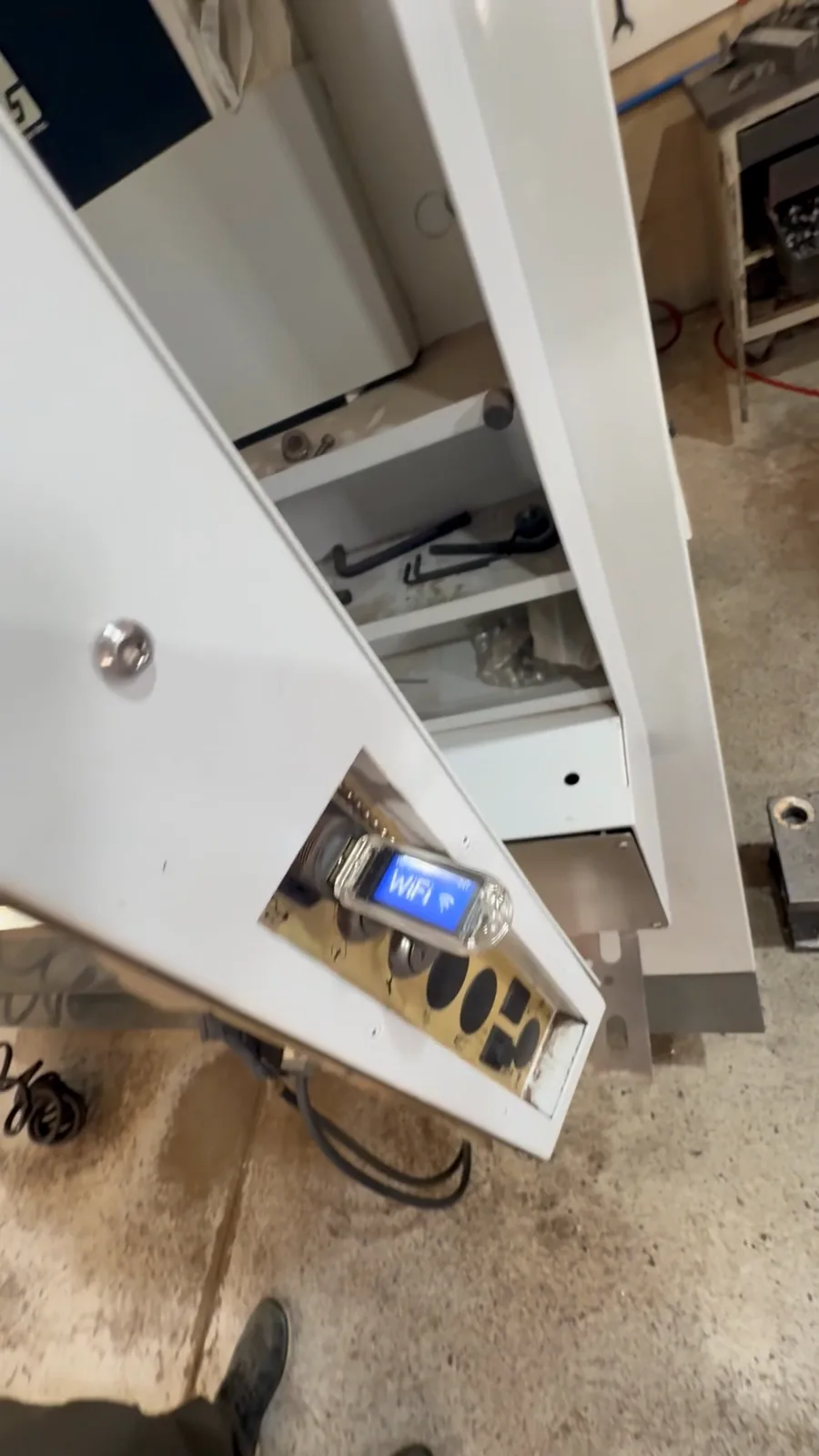

A hand at the WiFiDrive in a Haas pendant’s side portHaas

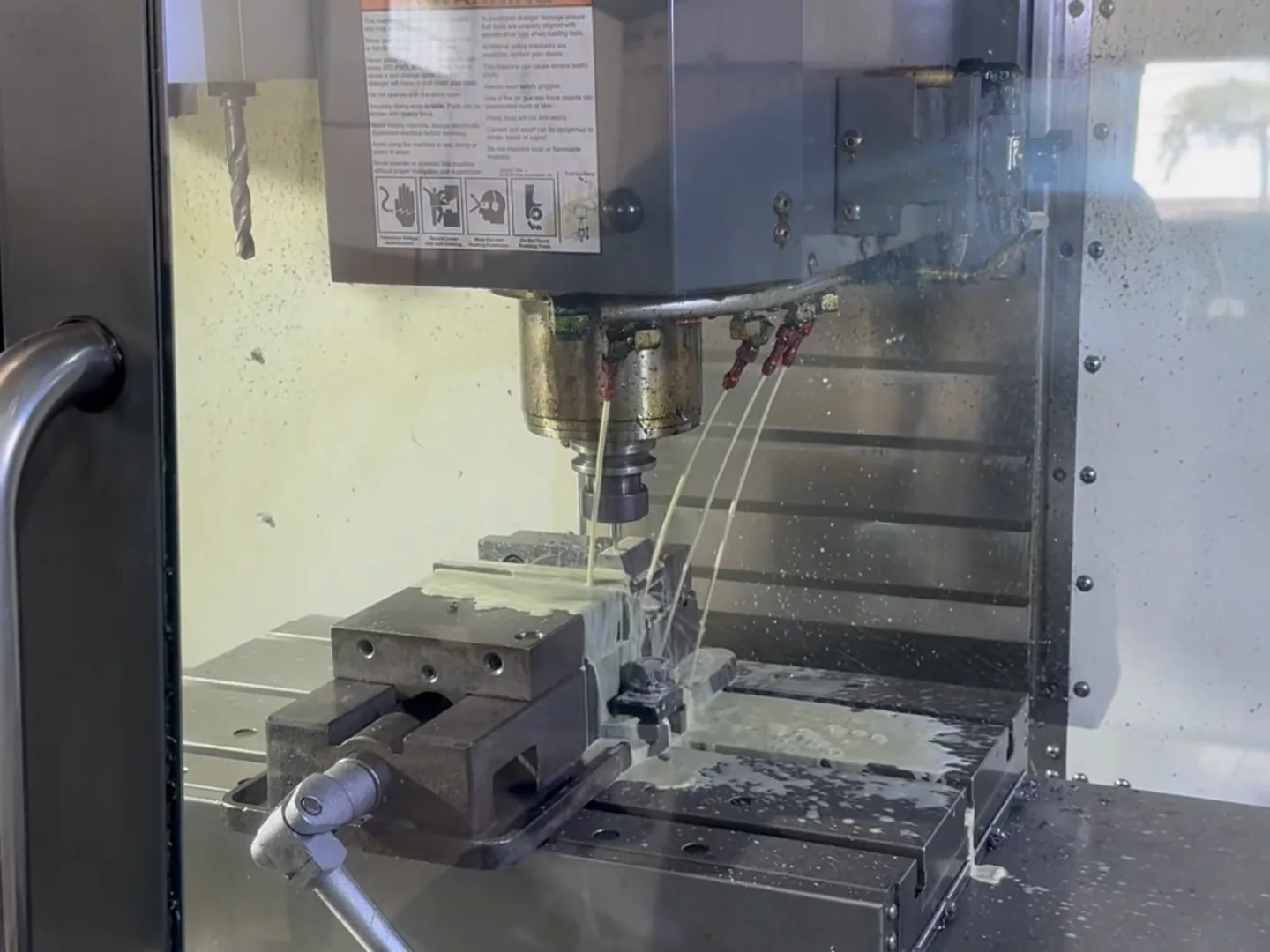

A Haas’s spindle cuttingHaas

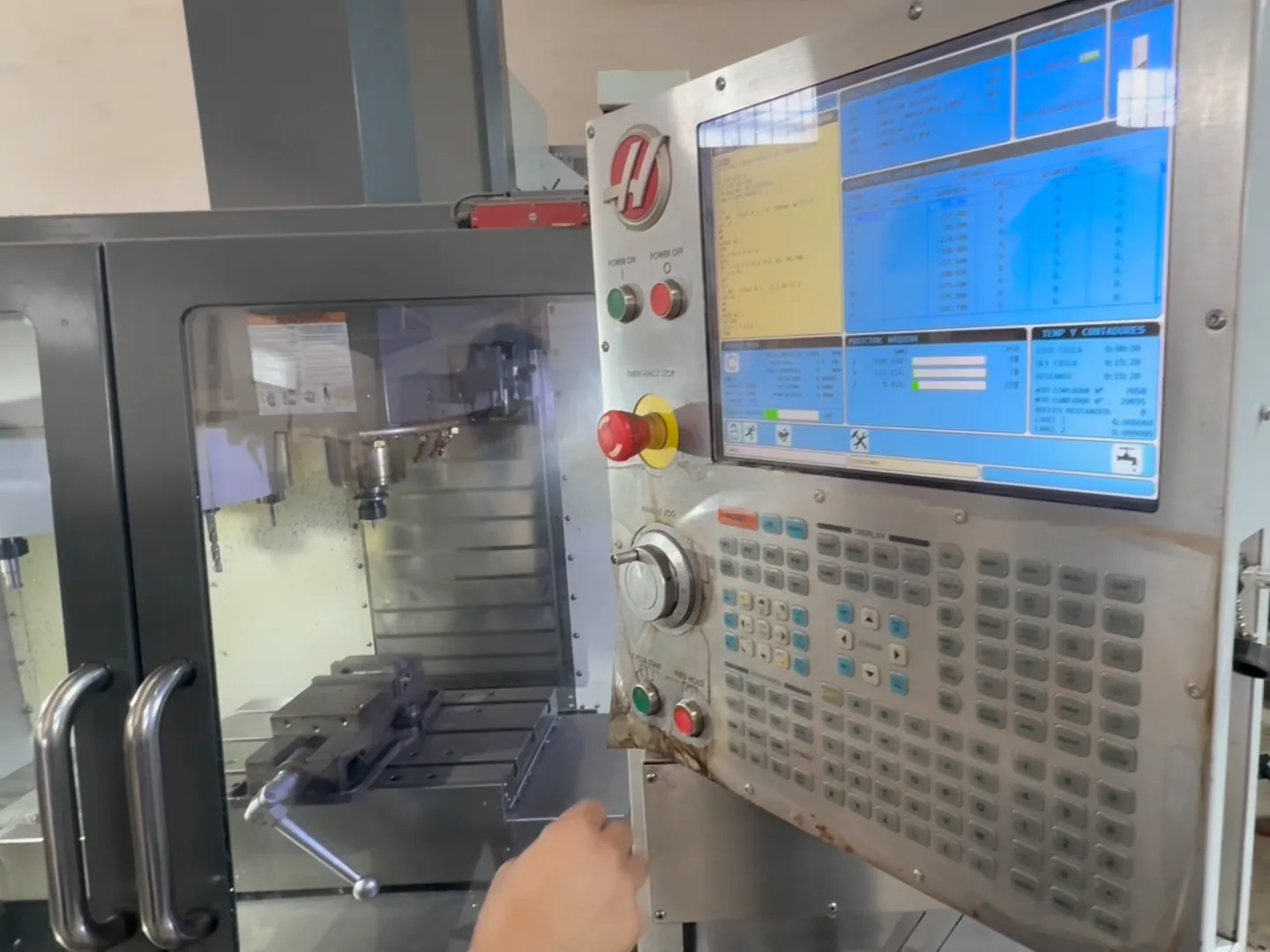

The operator at a Haas pendant loading a programHaas

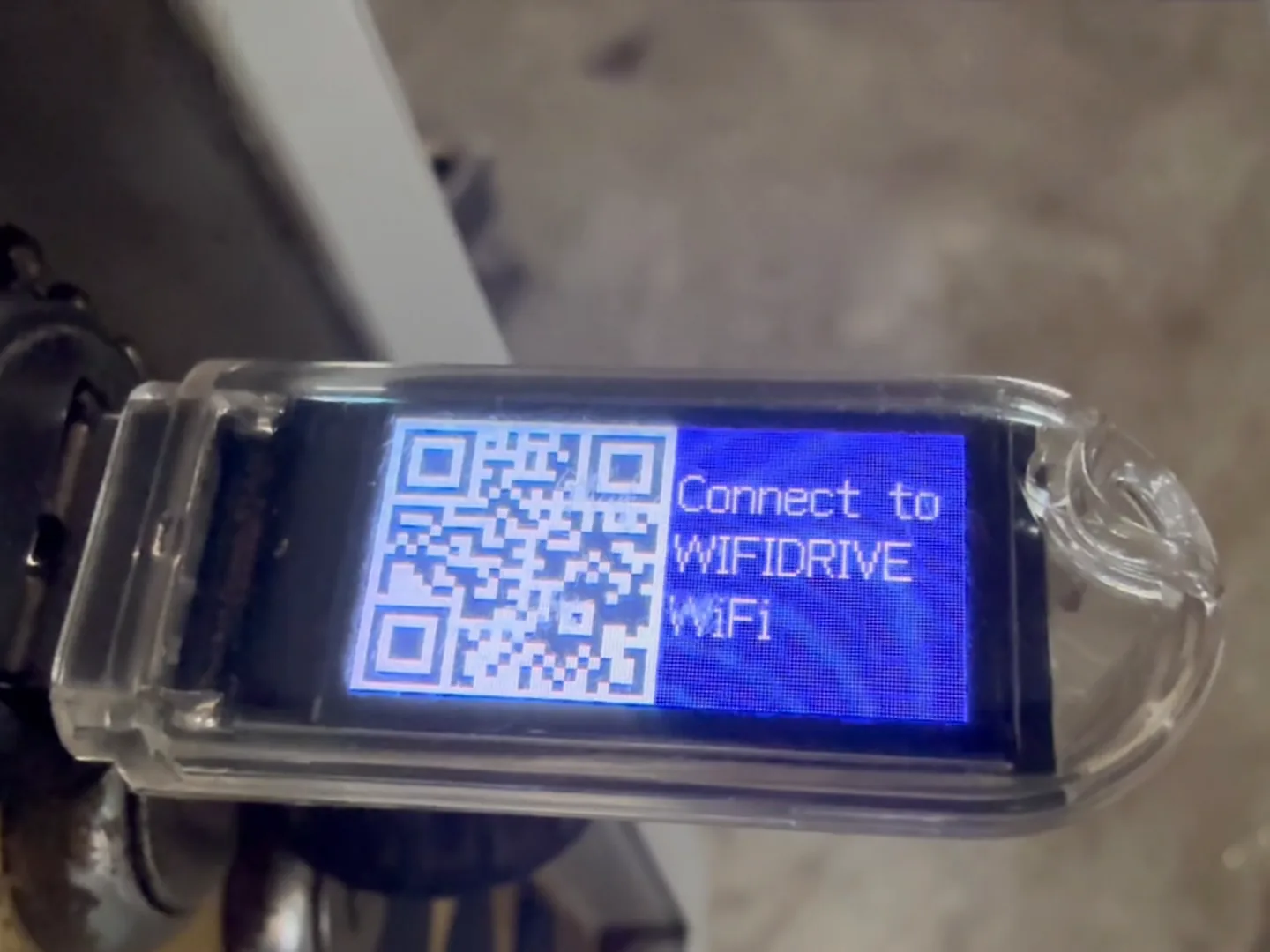

A WiFiDrive in a Haas pendant’s port, showing the code that joins its networkHaas
Models

Every Haas mill and lathe.

WiFiDrive goes in its USB port on every one.

VF Series

  • VF-1, in our photos
  • VF-2, in our photos
  • VF-2SS
  • VF-2YT
  • VF-3, in our photos
  • VF-3SS
  • VF-4, in our photos
  • VF-4SS
  • VF-5
  • VF-5/40
  • VF-5/50
  • VF-6
  • VF-6/40
  • VF-6/50
  • VF-7, in our photos
  • VF-7/40
  • VF-7/50
  • VF-8/40
  • VF-9/40
  • VF-10/40
  • VF-11/40
  • VF-12/40
  • VF-14/40

Universal Machines

  • UMC-400
  • UMC-500
  • UMC-750
  • UMC-1000
  • UMC-1250
  • UMC-1500-DUO

VR Series

  • VR-5
  • VR-8
  • VR-9
  • VR-11
  • VR-14

VP-5 Prismatic

  • VP-5

Pallet-Changing VMCs

  • VC-400

Mini Mills

  • Mini Mill
  • Super Mini Mill

Mold Machines

  • VM-2
  • VM-3
  • VM-6
  • VM-8
  • VM-9

High-Speed Drill Centers

  • DC-1
  • DC-2

Drill/Tap/Mill Series

  • DT-1
  • DT-2
  • DT-3
  • DM-1
  • DM-2
  • DM-3

Toolroom Mills

  • TM-0
  • TM-1
  • TM-2
  • TM-0P
  • TM-1P
  • TM-2P

Compact Mills

  • CM-1

Gantry Series

  • GR-510
  • GR-712
  • GM-1
  • GM-2

Extra-Large VMC

  • VS-1
  • VS-3

ST Series

  • ST-10
  • ST-15
  • ST-20
  • ST-25
  • ST-28
  • ST-30
  • ST-35
  • ST-40
  • ST-45
  • ST-55

Dual-Spindle

  • DS-20Y
  • DS-25Y
  • DS-30Y

Box Way Series

  • SB-28
  • SB-35

Toolroom Lathes

  • TL-1
  • TL-2

Chucker Lathe

  • CL-1

Horizontal Mills

  • EC-400
  • EC-500
  • EC-630
  • EC-1600
The stick

What a Haas asks of it.

  • Loads a programCopies .NC files into memory in the Device Manager, or runs one straight from the stick (FNC)
  • PortOn the right side of the control pendant, under a removable dust cap
  • FormatFAT32 and USB 3.1 or lower by Haas's guide; the Haas machines we tested read WiFiDrive's FAT16 as it ships
  • File namesPrograms are named Onnnnn; a subprogram called from outside memory must be Onnnnn.nc
  • Writes backPrograms copied out, and backups; settings go to USB0/<serial>/CONFIGURATION/
  • WiFiDrive’s layoutThe one it ships with
  • Sourceshaas.co.uk, haascnc.com, haascnc.com (2), haascnc.com (3), practicalmachinist.com (forum)

Will it work with your Haas?

If your Haas reads a USB stick, it reads WiFiDrive. If yours doesn’t, send it back within 30 days for a full refund.
